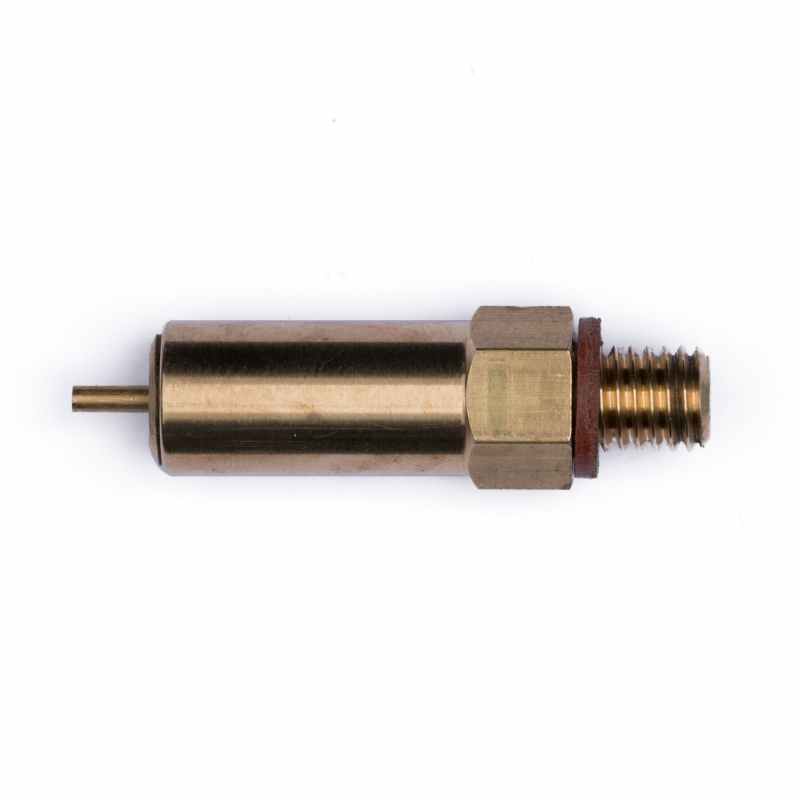

MSS Mamod Upgrades - High Pressure Safety Valve

MSS Mamod Upgrades - High Pressure Safety Valve

£18.00
Account Holders Earn 18 Loyalty Points
Thread
–
+
Ref:
DSUPHPSV26
Brand
Dream Steam Works
Type
Upgrade Part
Gauge
16mm
Dream Steam Works

One of the most popular and effective upgrades you can get, along with a three wick meths burner, the effective pressure is raised to about 20-25 psi, thus giving more power to the pistons but still within the safe working pressure of the standard boiler.

The 20-25 psi valve is available in a 1/4 x 26 tpi thread for standard loco boiler, usually fitted in place of whistle when used with Water Top-up Valve.

Also available in a 1/4 x 40 tpi thread to fit the Premium High Pressure Boilers at 40-45 psi.

If you require an alternate blow off pressure please add your request to the comments at the checkout and the valve will be set before dispatch. Currently the allowable range for custom setting is 20 to 60 psi.

Also Bought
Customer Reviews
Write a Review and share your opinions!
2 Reviews:
Pressure Relief Valve
Rating:
20 May 2024  |  Christopher

This is a nicely made item which was a direct replacement, much better than the original one. The service was quick and efficient and I would happily use you again.


Was this helpful to you?  Yes  /  No
Very Good
Rating:
15 July 2010  |  Chay

This item is a very good cheap way to improve your locos performance.

48 of 68 people found this review helpful.
Was this helpful to you?  Yes  /  No
